for SCIENTIFIC and Narrow-Band ASTROPHOTO Imaging with Antiblooming and Electronic Shutter

Sensor: Kodak KAF-16200 Monochrome CCD, Class 2
(Please note, Class 2 sensors are hardly distinguisable from Class 1 cameras and very popular for amateur astro imaging due to the opportunity make a little extra saving…Class 1 versions are recommended for scientific research)

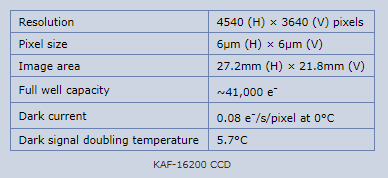

Resolution: 4540 x 3640 pixels
Full well capacity: appr 41,000 e^–
Dark Current: 0.08 e^–/s/pixel at 0 °C
Pixel Size: 6 x 6 µm
ABG: 2800x
Size of imaging area: 27.2 mm x 21.8 mm
Interface:  USB 2.0
Cooling: Two-stage Peltier up to -50°C

G3 CCD cameras are supplied in a foam-filled, hard carrying case containing:

• Camera body with a user chosen optional telescope adapter. The standard 2″ barrel adapter is included by default. If ordered, the filter wheel is already mounted inside the camera head and filters are threaded into place (if ordered).
• A 100-240 V AC input, 12 V DC output “brick” adapter with 1.8 m long power cable.
• 5 m long USB A-B cable for connecting camera to host PC.
• A CD-ROM or USB Flash Drive with camera drivers, SIPS software package with electronic documentation and PDF version of User’s Manual.
• A printed copy of camera User’s Manual

G3 CCD cameras are shipped in the foam-filled carrying case (left), larger case is used if camera is ordered with external filter wheel (right)

Slightly slimmer variant of the camera head without internal filter wheel is available. The head dimensions are 154 × 154 × 65 mm (approx. 6 × 6 × 2.5 inches). This variant allows attaching of external filter wheel with 5 or 7 positions for 50 × 50 mm or D50 mm filters.

Model G3-16200

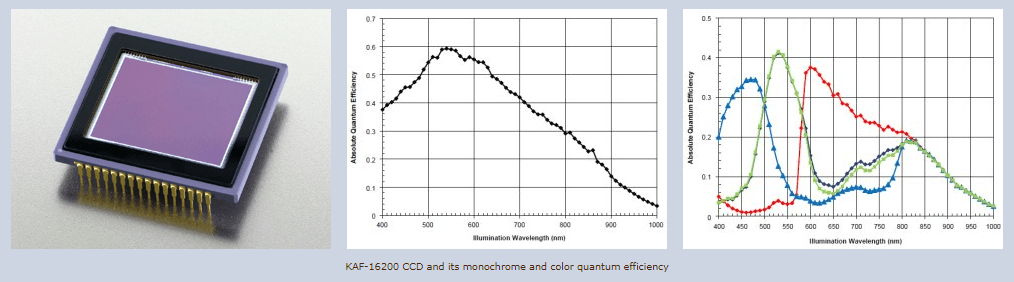

G3-16200 uses 16 MPx OnSemi KAF-16200 CCD with APS-H format.

Further product information is available on the manufacturer’s website
